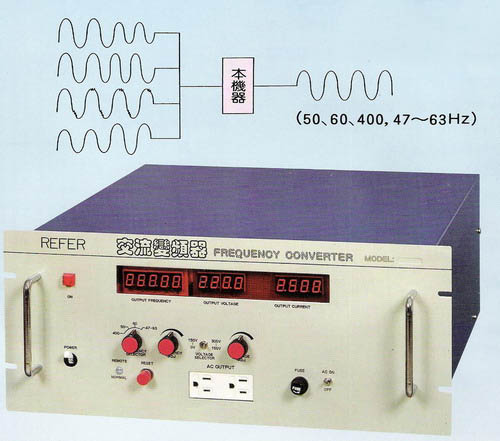

Variable-Frequency Drive (VFD)
Model: RFC-6 Series
- Using precise quartz oscillator (100ppm)
- Overload protection with alarm
- 33/4 precise digital voltmeter and ammeter
- 5-digit frequency display with a resolution of 0.01Hz
- Four selectable output frequencies (50Hz, 60Hz, 400Hz†, 47~63Hz)
- Wide output voltage range, adjustable from 0V to 300V
- Supporting standard voltages of different countries
- Low output distortion (THD <1%)
- Stable voltage regulation (output voltage regulation rate <1%)
- With thermal protection
- High stability and no RF interference
- Suitable for laboratories, automatic test systems, quality inspection units, factory production lines, life test of electrical products, 50Hz equipments
†Customized
| Input voltage | 110, 220VAC±10% |
| Input frequency | 50, 60Hz |
| Output voltage | 0~150VAC, 150~300VAC (連續可調) |
| Output frequency | 50, 60, 400†, 47~63Hz |
| Regualtion rate | <0.5% |
| Distortion | <1% |
†Customized
| Model | Capacity (KVA) | Output Wave | Frequency (Hz) |
|---|---|---|---|
| RER-6003 | 0.3 | SINE WAVE | 50/60/400†/47~63 |
| RER-6005 | 0.5 | ||
| RER-6010 | 1 | ||
| RER-6020 | 2 | ||
| RER-6030 | 3 |
†Customized
