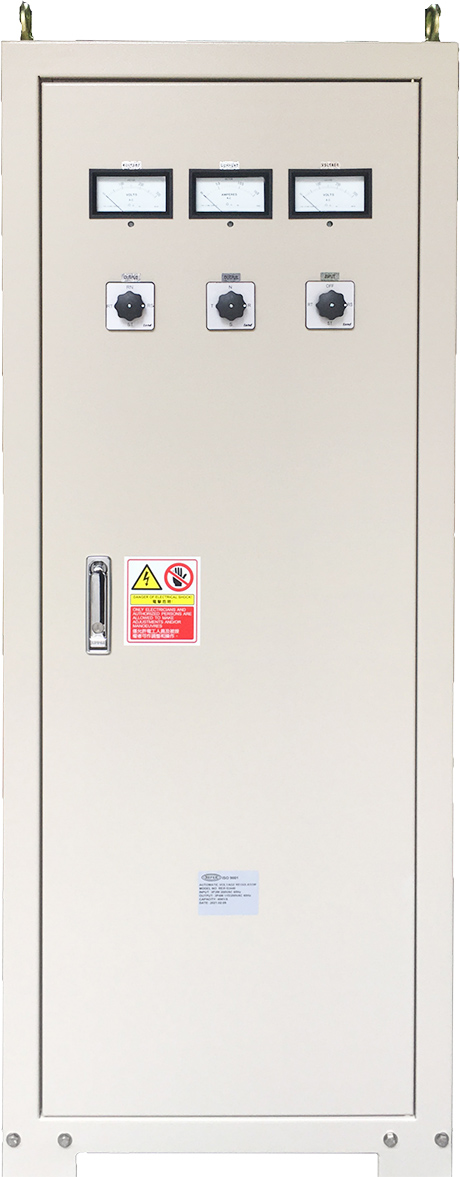

Automatic Voltage Regulator (AVR)
Model: RER-5 Series
- Highly stable output
- Soft start protection to prevent damage from inductive surge
- Special dynamic filter to minimize harmonics
- Ultra-isolation transformer to eliminate the noise form the input
- With Faraday shielding
- Equipped with smoothing inductor
- No movable component, and hence low failure rate
- High overload capacity
- Wide adjustable range for output voltage
- Continuously phase control SCR
- Control by Semiconductor components, which is smaller, longer lifespan, and quieter
- Suitable for communication devices, industrial devices, computer systems, highly sensitive instruments, medical equipments, semiconductor equipments
| Input voltage | ±15% or +10%~-20% of the rated input voltage |
| Output voltage | ±10% adjustable |
| Static voltage regulation | ±1% (input voltage and load changing in the rated range simultaneously.) |
| Output distortion | ≤2% |
| Response time | 1/2 cycle, stable completely within 5 cycles |
| Power factor | ≤±0.8 |
| Efficiency | ≥95% |
| Operating temperature & humidity | 0~50°C; 0~95% |
| Frequency variation range | ±3Hz |
| Others | Three-phase unbalanced load is within 30%, and the output voltage unbalance is less than 3%. |
| 150% overload capacity, stability rate less than 2% |
※ Customization is available for special requirements.
※The information in this document is subject to change without notice.
| Model | Capacity (KVA) | Phase/Wires | Voltage (VAC) | Dimension | ||
|---|---|---|---|---|---|---|
| Height (mm) | Width (mm) | Depth (mm) | ||||
| RER-51201 | 1 | 1Φ2W | 110, 220 | 140 | 300 | 420 |
| RER-51202 | 2 | 1Φ2W | 110, 220 | 600 | 280 | 400 |
| RER-51203 | 3 | 1Φ2W | 110, 220 | 600 | 280 | 420 |
| RER-51305 | 5 | 1Φ3W | 110, 220 | 800 | 400 | 420 |
| RER-51307 | 7.5 | 1Φ3W | 110, 220 | 800 | 400 | 420 |
| RER-51310 | 10 | 1Φ3W | 110, 220 | 1060 | 420 | 480 |
| RER-51315 | 15 | 1Φ3W | 110, 220 | 1060 | 420 | 480 |
| RER-51320 | 20 | 1Φ3W | 110, 220 | 1060 | 420 | 480 |
| RER-51325 | 25 | 1Φ3W | 110, 220 | 1400 | 500 | 520 |
| RER-51330 | 30 | 1Φ3W | 110, 220 | 1600 | 600 | 600 |
| RER-51337 | 37.5 | 1Φ3W | 110, 220 | 1600 | 600 | 600 |
| RER-53407 | 7.5 | 3Φ4W | 120/208, 220/380 | 800 | 400 | 420 |
| RER-53410 | 10 | 3Φ4W | 120/208, 220/380 | 1060 | 420 | 480 |
| RER-53415 | 15 | 3Φ4W | 120/208, 220/380 | 1200 | 470 | 580 |
| RER-53420 | 20 | 3Φ4W | 120/208, 220/380 | 1200 | 470 | 580 |
| RER-53425 | 25 | 3Φ4W | 120/208, 220/380 | 1200 | 470 | 580 |
| RER-53430 | 30 | 3Φ4W | 120/208, 220/380 | 1500 | 600 | 600 |
| RER-53437 | 37.5 | 3Φ4W | 120/208, 220/380 | 1500 | 600 | 600 |
| RER-53450 | 50 | 3Φ4W | 120/208, 220/380 | 1550 | 600 | 800 |
| RER-53460 | 60 | 3Φ4W | 120/208, 220/380 | 1750 | 600 | 800 |
| RER-53475 | 75 | 3Φ4W | 120/208, 220/380 | 1750 | 700 | 800 |
| RER-534100 | 100 | 3Φ4W | 120/208, 220/380 | 1750 | 1200 | 900 |
